How Orifice Plate Edge Wear Affects Measurement Accuracy

In industrial flow measurement, small changes in geometry can create meaningful changes in performance. That is why understanding orifice plate edge wear effects on accuracy is essential for operators, engineers, maintenance teams, and purchasing managers who rely on differential pressure flowmeters. An orifice plate may look like a simple machined disc with a centered bore, but its accuracy depends on precise dimensions, a sharp upstream edge, correct bore geometry, and consistent installation conditions. When the edge begins to wear, round, chip, pit, or erode, the relationship between differential pressure and flow rate begins to shift. Over time, this can introduce measurement error, reduce confidence in process data, and affect custody transfer, production reporting, emissions calculations, and equipment performance decisions.

Orifice plates are widely used because they are durable, cost-effective, and suitable for many oil and gas, petrochemical, power, and process applications. However, they are not immune to damage. Fluids moving at high velocity, entrained sand, scale, corrosion products, hydrates, liquids in gas service, or contaminants in multiphase flow can gradually degrade the bore edge. Once the plate no longer matches its original machined profile, the discharge coefficient can change, creating a difference between the flow rate calculated by the meter and the actual flow rate passing through the line.

Orifice Plate Edge Wear and Accuracy Loss

The orifice plate works by creating a restriction in the pipe. As fluid passes through the bore, velocity increases and pressure drops. A differential pressure transmitter measures the pressure difference across the plate, and that reading is used with known variables such as pipe diameter, bore diameter, fluid density, expansibility, and the discharge coefficient to calculate flow.

The discharge coefficient is a correction factor that accounts for real-world flow behavior. In an ideal mathematical model, the fluid would pass through the orifice in a perfectly predictable way. In actual service, the flow stream contracts, separates, accelerates, and recovers pressure according to the physical shape of the plate and the condition of the upstream edge. The sharper and more precise the edge, the more predictable the flow behavior.

When edge wear occurs, the effective flow geometry changes. A sharp square edge can become rounded. A clean bore can become nicked or irregular. Surface roughness can increase. The bore diameter can grow slightly if abrasive erosion removes material. Each of these changes can alter how the jet contracts downstream of the plate, which affects the discharge coefficient.

Orifice plate edge wear effects on accuracy

The most common measurement issue caused by edge wear is a systematic flow error. Because the meter continues to calculate flow based on the original bore dimensions and accepted coefficient assumptions, the system may not recognize that the plate has changed physically. This is especially problematic because the transmitter, flow computer, and control system can all appear to be functioning normally while the primary element is no longer within its expected tolerance.

Edge wear can affect accuracy in several ways:

• Rounded upstream edges can increase the discharge coefficient. A rounded edge may allow fluid to pass more smoothly through the bore, reducing flow separation compared with a sharp edge.
• Bore enlargement can change the beta ratio. The beta ratio is the orifice bore diameter divided by the pipe inside diameter. Even small dimensional changes can affect the flow calculation.
• Irregular damage can cause unstable differential pressure. Chips, dents, and uneven wear can disturb the flow profile, especially at higher velocities.
• Pitting and corrosion can change surface conditions. A roughened edge or face can influence local turbulence and pressure behavior.
• Erosion can create long-term drift. Unlike sudden transmitter failure, erosion often introduces a gradual error that may not be obvious without inspection or proving.

The direction and size of the error depend on the type of damage, flow regime, fluid properties, beta ratio, and installation conditions. In many cases, edge rounding causes the meter to over-register or under-register, depending on how the actual discharge coefficient shifts relative to the value used in the calculation. The key point is that a worn plate no longer behaves like the calibrated or standardized primary element the system assumes it is using.

For operations that depend on accurate flow measurement, this matters. An error of even a fraction of a percent can be important in custody transfer or allocation measurement. In production operations, inaccurate flow data may affect well performance analysis, compressor loading, chemical injection rates, separator balancing, and regulatory reporting. In process environments, it can affect efficiency, control stability, and product quality.

Causes of Orifice Plate Edge Degradation

Orifice plate edge degradation can occur for several reasons. Some are related to fluid conditions, while others are tied to installation, handling, material selection, or maintenance practices. Understanding the cause helps determine whether the solution is better inspection planning, a more suitable material, a different plate design, improved filtration, or a change in operating conditions.

High-velocity and abrasive flow impacts

High-velocity flow is one of the leading contributors to orifice plate wear. As fluid accelerates through the bore, particles and droplets can strike the upstream edge and bore surface with significant force. In clean, dry, non-corrosive service, this may not cause rapid degradation. In abrasive or contaminated service, however, erosion can become a major concern.

Common abrasive contributors include:

• Sand from production wells
• Pipe scale and rust
• Catalyst fines
• Corrosion products
• Weld slag or debris left after construction
• Solids carried in produced fluids
• Entrained liquids in gas streams
• Slurries or dirty process fluids

The highest wear often occurs where the flow stream impinges on the sharp edge. Over time, microscopic cutting and impact remove material. The once-crisp edge becomes rounded, and the bore may become polished, grooved, or enlarged. If the flow is not evenly distributed across the pipe, wear may also be uneven around the circumference of the bore.

Velocity magnifies this effect. The faster particles move, the more energy they carry. This is why abrasive service at high differential pressure can be especially damaging. Applications with frequent flow surges, start-ups, blowdowns, or unstable multiphase behavior may also experience accelerated wear because the plate is repeatedly exposed to changing impact forces.

Corrosion can also contribute to edge degradation. If the plate material is not compatible with the fluid, chemical attack may pit or undercut the edge. In sour gas, wet gas, produced water, or chemically aggressive process streams, corrosion and erosion can work together. Corrosion weakens or roughens the surface, while velocity removes the affected material. This combined erosion-corrosion mechanism can reduce plate life significantly.

Handling damage is another overlooked cause. The upstream edge of an orifice plate should be protected during storage, transport, cleaning, and installation. A dropped plate, improper scraping, contact with hard tools, or careless installation can create nicks before the plate ever enters service. In precision flow measurement, a small nick is not just cosmetic damage. It can become a local disturbance that affects the pressure relationship.

Other causes include:

• Incorrect plate material for the service conditions
• Poor filtration or lack of upstream debris control
• Incorrect installation orientation
• Gasket intrusion or misalignment
• Excessive differential pressure
• Frequent removal and reinstallation
• Improper cleaning methods
• Inadequate storage protection

When diagnosing repeated edge wear, it is important to look beyond the plate itself. The plate may be showing symptoms of a broader system condition, such as sand production, corrosion, poor upstream piping, or a process upset pattern.

Detecting and Preventing Edge Wear

Because edge wear often develops gradually, it can be difficult to detect through transmitter readings alone. The flowmeter may continue to produce stable values, but those values may be drifting away from true flow. A structured inspection and maintenance program is the most reliable way to manage the risk.

Visual inspection is usually the first step. The plate should be removed carefully and examined under proper lighting. The upstream edge should be checked for rounding, nicks, burrs, pitting, scratches, deposits, and erosion patterns. Technicians should also verify the bore diameter and plate thickness when accuracy is critical. A plate that appears generally acceptable at a glance may still be outside tolerance if the bore has worn or if the edge radius has increased.

Inspection should include:

• Upstream edge sharpness
• Bore diameter
• Bore roundness
• Plate flatness
• Surface pitting or corrosion
• Deposits or contamination
• Gasket marks or signs of misalignment
• Flow direction markings
• Plate identification and material traceability

Cleaning should be performed carefully. Deposits can affect measurement, but aggressive cleaning can damage the edge. Wire brushing, scraping, grinding, or using improper tools can create burrs or rounding. If deposits are common, the maintenance program should address the root cause and use cleaning methods that preserve the machined surface.

Inspection intervals and replacement planning

Inspection intervals should be based on service severity, historical wear patterns, measurement importance, and operating conditions. A clean, stable, non-abrasive gas service may require less frequent inspection than a high-velocity production gas line carrying sand or liquids. Critical custody transfer applications may require more disciplined verification than general process monitoring.

Replacement planning should account for both scheduled maintenance and unexpected wear. Keeping properly documented spare plates on hand can reduce downtime when inspection shows a plate should be removed from service. For high-value measurement points, it may be useful to track plate condition over time and build a wear history. This helps teams forecast replacement intervals rather than reacting after measurement error is suspected.

Preventive strategies may include:

• Selecting plate materials suited to the fluid and corrosion environment
• Using harder alloys or specialty materials in abrasive service
• Improving upstream filtration or separation
• Reducing debris from construction and maintenance activities
• Managing flow velocity where possible
• Reviewing beta ratio and differential pressure range
• Ensuring correct plate installation and alignment
• Protecting plates during storage and handling
• Documenting inspection results with photos and measurements

In some applications, a standard orifice plate may not be the best long-term solution if wear is severe. Alternative primary elements, conditioning plates, different bore designs, or revised meter run configurations may be worth considering. However, in many oil and gas applications, proper material selection, precision machining, careful installation, and planned inspection can significantly extend plate life and improve measurement confidence.

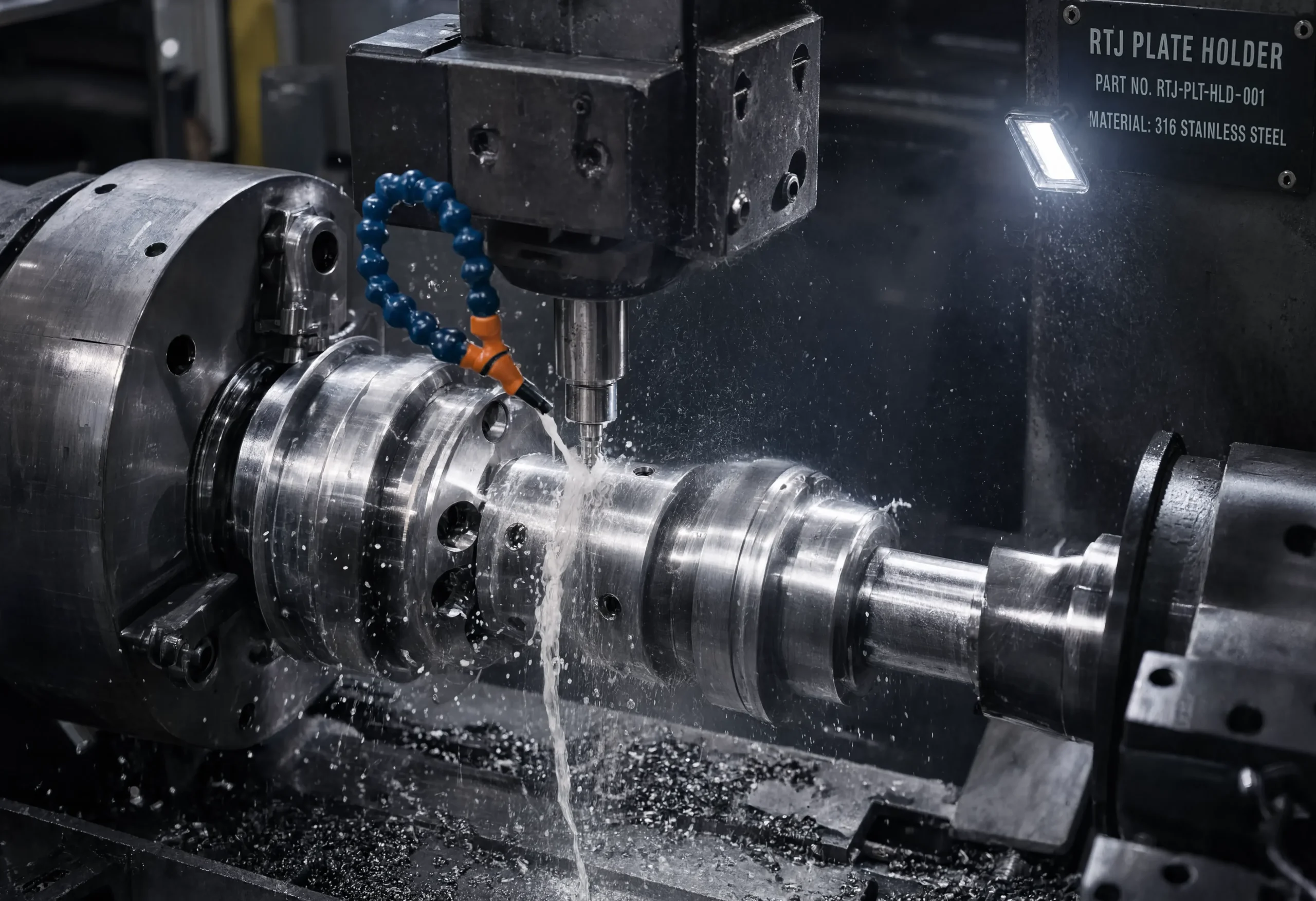

A strong quality program also matters. Orifice plates should be manufactured to tight tolerances, with the correct bore size, finish, edge profile, thickness, material, and markings. Custom machining can be especially valuable when standard plates do not meet application requirements. A well-made plate gives the measurement system the best possible starting point, while a poorly manufactured plate can introduce error even before wear occurs.

FAQ

What is orifice plate edge wear?

Orifice plate edge wear is the gradual loss of the sharp, precise bore edge caused by erosion, corrosion, abrasion, handling damage, or process conditions. It can change the way fluid passes through the orifice and affect measurement accuracy.

Why does the upstream edge matter so much?

The upstream edge controls how the fluid separates and contracts as it enters the bore. A sharp, square edge creates predictable flow behavior. When that edge becomes rounded or damaged, the discharge coefficient can shift.

Can a worn orifice plate still produce stable readings?

Yes. A worn plate can still produce stable differential pressure readings, but the calculated flow may be inaccurate because the system assumes the plate geometry has not changed.

What types of flow cause the most wear?

High-velocity flow with sand, scale, rust, liquids, or other abrasive particles is especially damaging. Corrosive fluids and multiphase flow can also accelerate edge degradation.

How often should an orifice plate be inspected?

Inspection frequency depends on service conditions and measurement criticality. Abrasive, corrosive, high-velocity, or custody transfer applications usually require more frequent inspection than clean, stable process service.

Can edge wear be repaired?

Minor deposits can often be cleaned, but a worn, rounded, chipped, or dimensionally incorrect edge should not usually be repaired in the field. Replacement is often the best choice for maintaining measurement integrity.

What are signs that an orifice plate may need replacement?

Signs include rounded edges, visible nicks, pitting, bore enlargement, uneven wear, corrosion, damaged markings, plate warping, or unexplained flow measurement drift.

Does material selection affect orifice plate life?

Yes. Choosing the right material for abrasive, corrosive, high-temperature, or high-pressure service can improve durability and reduce premature wear.

How does edge wear affect the discharge coefficient?

Edge wear changes the physical flow path through the orifice. This can alter jet contraction, pressure recovery, and turbulence, which can shift the discharge coefficient away from the value used in the flow calculation.

Why is precision machining important for orifice plates?

Precision machining ensures the bore diameter, edge profile, flatness, finish, and material specifications are correct. Accurate manufacturing helps reduce initial measurement uncertainty and supports long-term performance.
